Manim Web

Examples

Runnable examples for the currently supported feature set. Previews are lazy and only compile when you click Render preview, so opening this page does not trigger a flood of compile requests.

Coverage

Core Objects

  • - Circle, Square, Rectangle, Line, Arrow, Dot, Polygon, RegularPolygon
  • - Text, Tex, MathTex
  • - ImageMobject, SVGMobject
  • - Group and VGroup

Animation Primitives

  • - Create, FadeIn, FadeOut, Write, Unwrite, GrowFromCenter, GrowFromPoint, ShrinkToCenter, Uncreate
  • - Rotate, Shift, MoveTo, Scale, ScaleInPlace
  • - Transform, ReplacementTransform, TransformFromCopy, ClockwiseTransform, CounterclockwiseTransform
  • - MoveToTarget, ApplyMethod, MoveAlongPath, ApplyPointwiseFunction
  • - AnimationGroup, LaggedStart, LaggedStartMap

Scene Features

  • - Camera frame animate, move_camera, zoom_camera
  • - add_fixed_in_frame_mobjects for HUD/static overlays
  • - Updaters via add_updater / clear_updaters
  • - Voiceovers, captions, background audio, image assets
  • - Compilation diagnostics with line and column mapping
Active Section
Camera
5 visibleOpen cards when needed
Browse one category at a time instead of loading a long mixed gallery.
Camera

2D world space vs frame space

Show a world-space label and a HUD pinned to the viewport with an updater, then release it so the label becomes a normal scene object.

from manim import * class TwoDWorldVsFrameScene(MovingCameraScene):    def construct(self):        plane = NumberPlane().set_stroke(color=GREY_D, width=1)        marker = Dot(point=LEFT * 2.6 + UP * 0.6, color=BLUE).scale(1.4)        world_label = Text("World space", font_size=24, color=BLUE).next_to(marker, UP, buff=0.18)         hud_title = Text("Frame HUD", font_size=28, color=YELLOW)        hud_subtitle = Text("Pinned to the viewport", font_size=18, color=WHITE)        hud = VGroup(hud_title, hud_subtitle).arrange(DOWN, aligned_edge=LEFT, buff=0.08)        hud_offset = LEFT * 1.35 + DOWN * 0.7        hud.move_to(self.camera.frame.get_corner(UR) + hud_offset)         def pin_to_frame(mob):            mob.move_to(self.camera.frame.get_corner(UR) + hud_offset)         hud.add_updater(pin_to_frame)        self.add(plane, marker, world_label, hud)        base_width = self.camera.frame.width        self.play(self.camera.frame.animate.shift(RIGHT * 2.2).set(width=base_width / 1.2), run_time=1.1)        self.wait(0.2)         hud.remove_updater(pin_to_frame)        self.play(hud.animate.move_to(RIGHT * 2.8 + UP * 1.4), run_time=0.55)        self.play(self.camera.frame.animate.shift(LEFT * 1.4 + DOWN * 0.3).set(width=base_width), run_time=0.95)        self.wait(0.2) scene = TwoDWorldVsFrameScene()scene.construct()
No preview image yet
Camera

Simple camera move

Pan and zoom the frame.

from manim import * class SimpleCameraMove(MovingCameraScene):    def construct(self):        self.camera.background_color = BLACK        grid = NumberPlane()        self.add(grid)         base_width = self.camera.frame.width        self.play(self.camera.frame.animate.move_to(LEFT * 2).set(width=base_width / 1.3), run_time=1.5, rate_func=smooth)        self.wait(0.5)        self.play(self.camera.frame.animate.move_to(RIGHT * 2).set(width=base_width / 0.9), run_time=1.5, rate_func=smooth)        self.wait(0.5) scene = SimpleCameraMove()scene.construct()
No preview image yet
Camera

Camera frame animate

Use the 2D camera frame animate proxy to pan and zoom around a layout.

from manim import * class FrameAnimateScene(MovingCameraScene):    def construct(self):        self.camera.background_color = "#020617"         plane = NumberPlane().set_stroke(color=GREY_D, width=1)        left = Circle(color=BLUE).scale(1.2).shift(LEFT * 3)        right = Square(color=YELLOW).scale(1.1).shift(RIGHT * 3)        label = Text("Frame animate", font_size=36, color=WHITE).to_edge(UP)         self.add(plane, left, right, label)        base_width = self.camera.frame.width        self.play(self.camera.frame.animate.move_to(LEFT * 3).set(width=base_width / 1.5), run_time=1.4)        self.play(self.camera.frame.animate.move_to(RIGHT * 3).set(width=base_width / 1.3), run_time=1.4)        self.play(self.camera.frame.animate.move_to(ORIGIN).set(width=base_width), run_time=1.2)        self.wait(0.4) scene = FrameAnimateScene()scene.construct()
No preview image yet
Camera

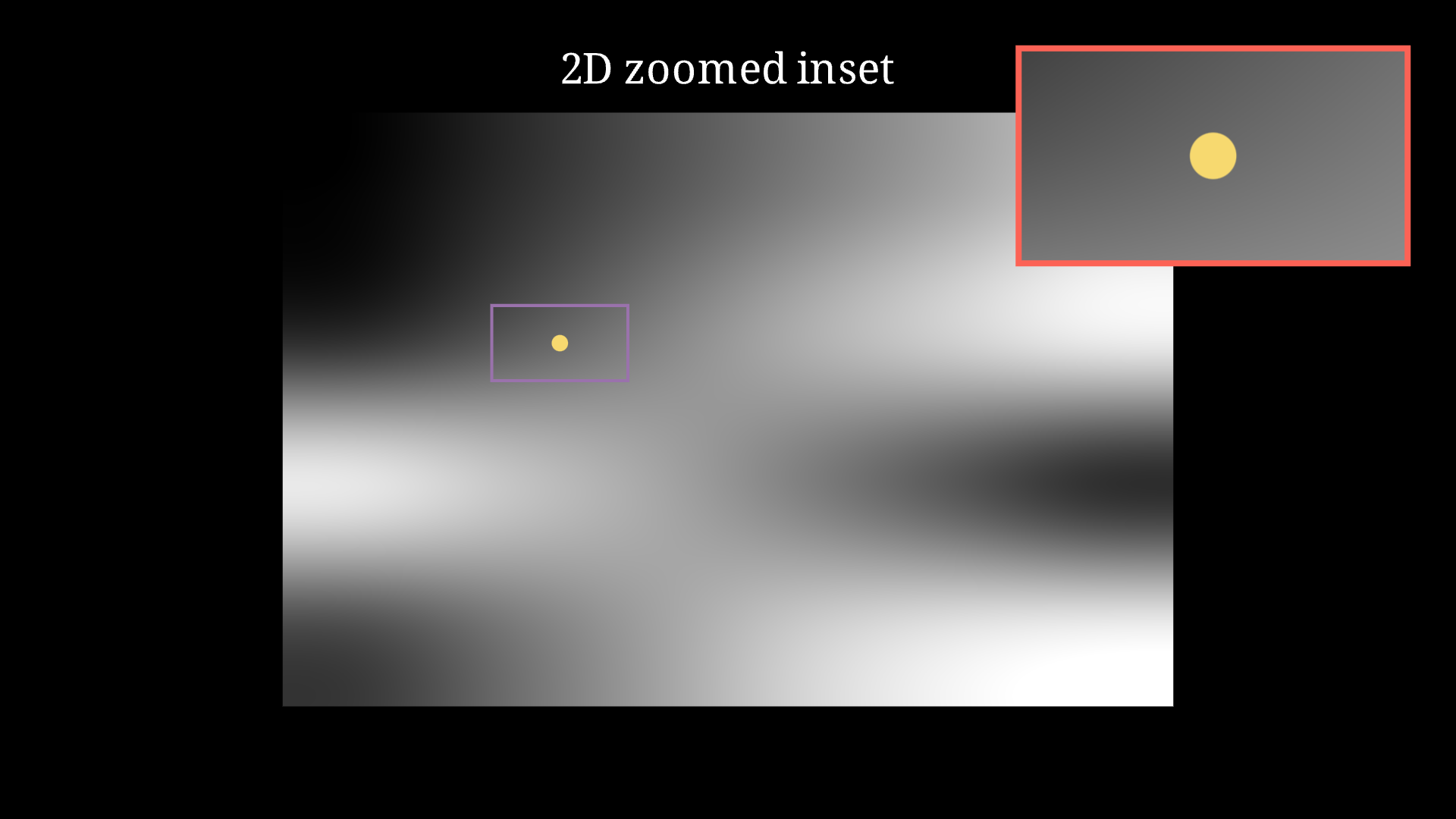

ZoomedScene 2D inset

Attach a live zoomed inset to a highlighted region in a 2D image scene.

from manim import *import numpy as np class ZoomedPixelsScene(ZoomedScene):    def __init__(self, **kwargs):        ZoomedScene.__init__(            self,            zoom_factor=0.35,            zoomed_display_height=2.1,            zoomed_display_width=3.8,            image_frame_stroke_width=6,            zoomed_camera_config={"default_frame_stroke_width": 3},            **kwargs        )     def construct(self):        pixels = np.uint8([            [0, 40, 80, 120, 160, 200],            [30, 80, 130, 180, 220, 255],            [255, 210, 170, 120, 70, 20],            [60, 110, 160, 210, 240, 255],        ])        image = ImageMobject(pixels)        image.height = 5.8        marker = Dot(LEFT * 2.1 + UP * 0.9, color=YELLOW)        caption = Text("2D zoomed inset", font_size=30, color=WHITE).to_edge(UP)         frame = self.zoomed_camera.frame        frame.move_to(marker)        frame.set_color(PURPLE)        self.zoomed_display.display_frame.set_color(RED)        self.zoomed_display.to_corner(UR, buff=0.45)         self.add(image, marker, caption)        self.activate_zooming()        self.play(self.get_zoomed_display_pop_out_animation(), run_time=0.8)        self.play(            marker.animate.shift(RIGHT * 2.0 + DOWN * 1.1),            frame.animate.shift(RIGHT * 2.0 + DOWN * 1.1),            run_time=1.6,            rate_func=smooth,        )        self.wait(0.4) scene = ZoomedPixelsScene()scene.construct()
ZoomedScene 2D inset preview
Camera

PNG zoomed inset workflow

Zoom into a public PNG region, then move the focus frame and inset together.

from manim import * class ZoomedPngScene(ZoomedScene):    def __init__(self, **kwargs):        ZoomedScene.__init__(            self,            zoom_factor=0.45,            zoomed_display_height=2.2,            zoomed_display_width=2.2,            image_frame_stroke_width=4,            zoomed_camera_config={"default_frame_stroke_width": 2},            **kwargs        )     def construct(self):        image = ImageMobject("/demo-icon.png")        image.set_width(3.0)        image.rotate(12 * DEGREES)        image.shift(LEFT * 2.2 + UP * 0.3)         overlay = Text("PNG", font_size=30, color=WHITE).move_to(image)        caption = Text("aligned edge", font_size=24, color=YELLOW).next_to(image, DOWN, buff=0.22).align_to(image, LEFT)         frame = self.zoomed_camera.frame        frame.set_color(PURPLE)        frame.scale(0.32)        frame.move_to(image.get_center() + RIGHT * 0.42 + UP * 0.1)        frame.rotate(-8 * DEGREES)         zoomed_display = self.zoomed_display        zoomed_display.next_to(image, RIGHT, buff=0.9)        zoomed_display.align_to(image, UP)        zoomed_display.display_frame.set_color(RED)         zoom_label = Text("zoom detail", font_size=24, color=RED)        zoom_label.next_to(zoomed_display.display_frame, DOWN, buff=0.16)        zoom_label.align_to(zoomed_display.display_frame, LEFT)         self.add(image, overlay, caption)        self.activate_zooming()        self.add(frame, zoomed_display, zoom_label)        self.play(self.get_zoomed_display_pop_out_animation(), run_time=0.8)         focus = Group(image, overlay)        self.play(            focus.animate.scale(1.15).rotate(18 * DEGREES).shift(RIGHT * 0.55 + DOWN * 0.3),            frame.animate.scale(0.82).rotate(14 * DEGREES).shift(RIGHT * 0.24 + DOWN * 0.2),            zoomed_display.animate.scale(1.1).shift(RIGHT * 0.2 + DOWN * 0.16),            caption.animate.shift(RIGHT * 0.56 + DOWN * 0.28),            zoom_label.animate.shift(RIGHT * 0.2 + DOWN * 0.16),            run_time=1.0,        )        self.wait(0.2) scene = ZoomedPngScene()scene.construct()
No preview image yet
